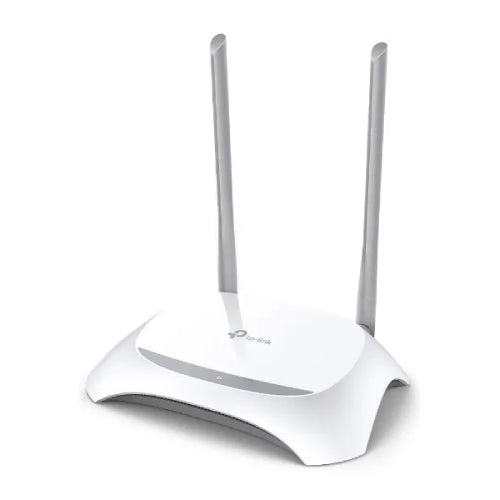

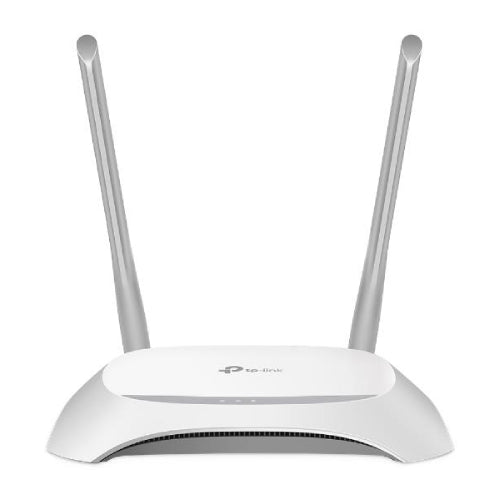

TP Link WR-840N 300Mbps Wireless N Speed Router

A versatile networking device designed for small offices and home use, delivering reliable Wi-Fi speeds up to 300Mbps on the 2.4GHz band. It supports multiple operating modes including Router, Access Point, Range Extender, and WISP providing flexibility to suit various networking needs. Equipped with two fixed 5dBi antennas, it ensures stable wireless coverage, while features like IP-based bandwidth control, parental controls, and guest network access enhance user management and security.

Key Features:

• 300Mbps Transmission Rate: Ideal for basic internet tasks, video streaming, and browsing

• Access Point Mode: Create a new wireless access point with ease

• Range Extender Mode: Boost existing Wi-Fi coverage

• Parental Controls: Set restrictions on internet access for connected devices

• IPTV Support: IGMP Proxy/Snooping, Bridge, and Tag VLAN support for smooth IPTV streaming

• IPv6 Compatible: Ready for next-generation internet protocol

Hardware Specifications:

• Ports:

  • 4 × 10/100Mbps LAN Ports

  • 1 × 10/100Mbps WAN Port

• Button: WPS/Reset

• External Power Supply: 9VDC / 0.6A

• Antenna: 2 Fixed Antennas

• Dimensions: 182 × 128 × 35 mm

Wireless Features:

• Frequency: 2.4 – 2.4835GHz

• Signal Rates:

  • 11n: Up to 300Mbps

  • 11g: Up to 54Mbps

  • 11b: Up to 11Mbps

• Reception Sensitivity:

  • 270M: -68dBm@10% PER

  • 130M: -68dBm@10% PER

  • 108M: -68dBm@10% PER

  • 54M: -68dBm@10% PER

  • 11M: -85dBm@8% PER

  • 6M: -88dBm@10% PER

  • 1M: -90dBm@8% PER

• Transmit Power:

  • CE: <20dBm

  • FCC: <30dBm

• Wireless Functions: Enable/Disable Wireless, WDS Bridge, WMM, Wireless Statistics

• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
