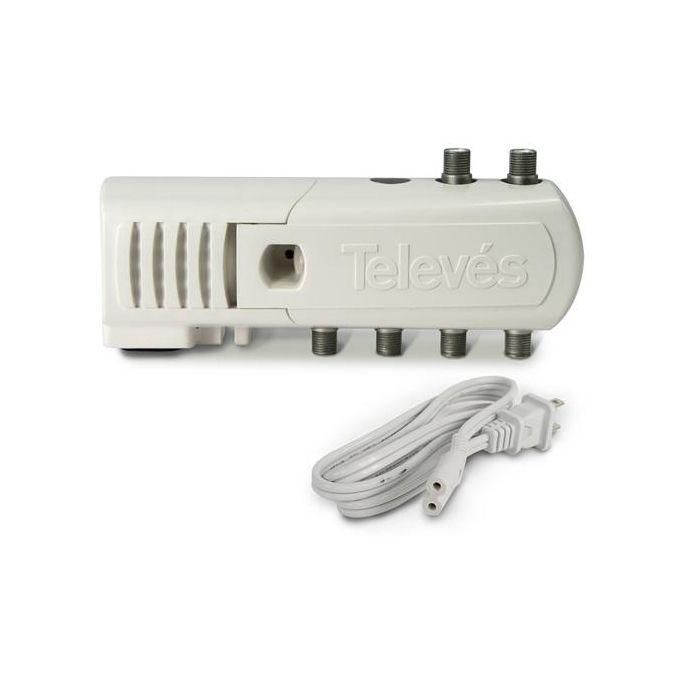

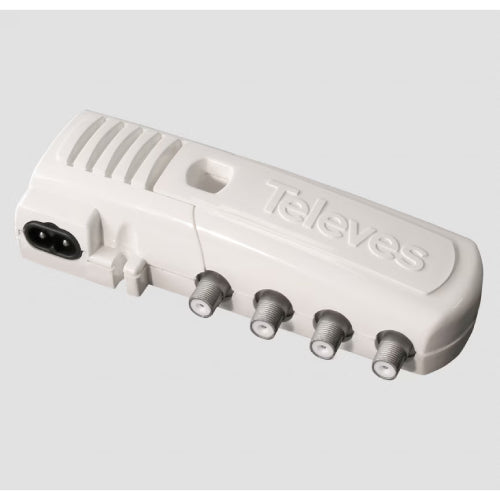

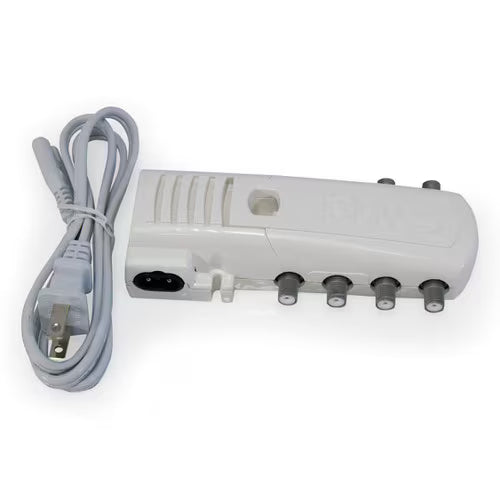

Televes Indoor Domestic Tv Line Amplifier

The Televes Indoor Domestic TV Line Amplifier is a high-performance solution designed to enhance over-the-air television signal distribution within a home. Featuring models with either 3 or 5 outputs, these amplifiers provide adjustable gain up to 20 dB for the 3-output version and up to 16 dB for the 5-output version allowing users to fine-tune signal strength to suit their specific needs. Each unit includes a dedicated TV output with a lower gain (12 dB) for direct connection to the nearest television, minimizing the risk of over-amplification.

KEY FEATURES

• 4G LTE high-performance amplifier

• Compact and durable design

• 4+1 signal outlets with F-type connectors

• Low power consumption

SPECIFICATIONS

• Operating Frequency: 47–790 MHz

• Gain: 4x 16 dB (OUT), 1x 11 dB (TV)

• Adjustment Range: 15 dB

• Noise Figure: 6 dB

• Output Level: >102 dBμV (DIN45004B)

• Power Supply: 207–253 V

• Operating Temperature: -5°C to +45°C

• Protection Level: IP20

• Consumption: W / mA unspecified

• Weight: 3 kg

FUNCTIONALITY

• Amplifies TV signals

• Suitable for multi-output TV distribution

• Provides clean signal with low noise

WHAT’S IN THE BOX

• 1 x 4G LTE Line-Compartment Amplifier
